Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
oblong hole
Implant Apical Shape
domed apex
Implant Body Surface
HA (hydroxyapatite), blasted with hydroxylapatite

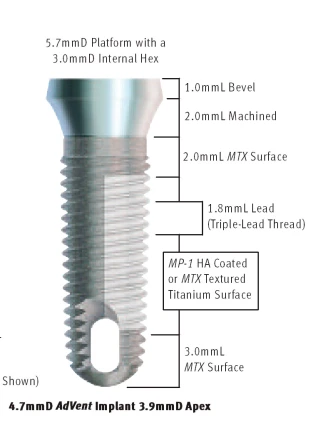

Implant Cervical Features: 3.0mm height Machined. 2.0mm height MTX surface. wider Diameter 6.1mm (1.0mm below Platform).
Implant Apical Features: 3.0mm MTX surface.
Implant Body Thread: Triple-Lead Thread. 1.8mm pitch. Thread Depth 0.35mm.
Sizes:Implant Diameter 4.7mm. Platform Diameter: 5.7mm. Internal Hexagon Diameter:3.0mm. Depth:1.5mm. 44 deg. Bevel with Ledge. 1-72 UNF Bore.
Implant Length: 8.0mm,10.0mm,13.0mm,16.0mm.
Implant Apical Features: 3.0mm MTX surface.
Implant Body Thread: Triple-Lead Thread. 1.8mm pitch. Thread Depth 0.35mm.
Sizes:Implant Diameter 4.7mm. Platform Diameter: 5.7mm. Internal Hexagon Diameter:3.0mm. Depth:1.5mm. 44 deg. Bevel with Ledge. 1-72 UNF Bore.
Implant Length: 8.0mm,10.0mm,13.0mm,16.0mm.
Implants with Compatible Platforms
Titan implants INC.
