Manufacturer:
Site: MegaGen
Products: MegaGen
Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex

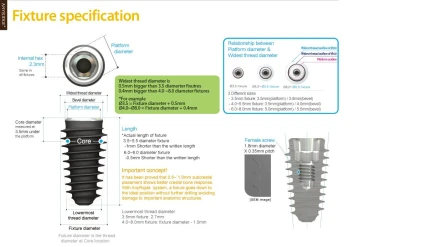

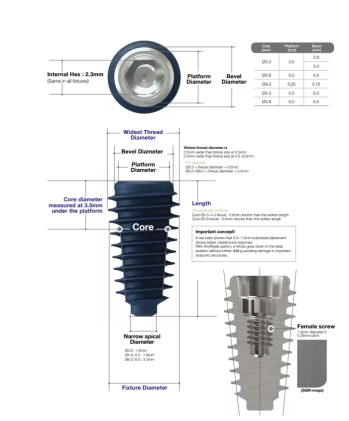

Platform to Abutment Connection: Internal Morse Taper 5 deg. Internal Hexagon. Hexagon Width-2.3mm.
Internal Thread-1.8mm X 0.35mm pitch. Platform Diameter:3.5mm.

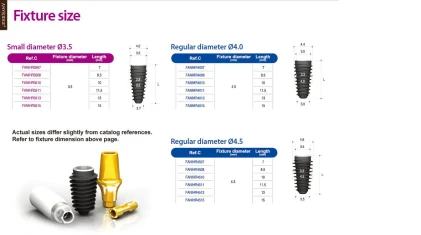

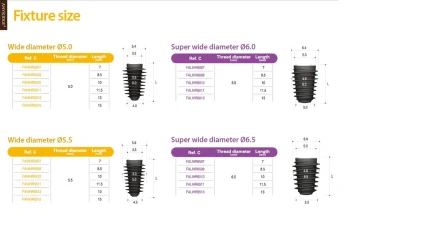

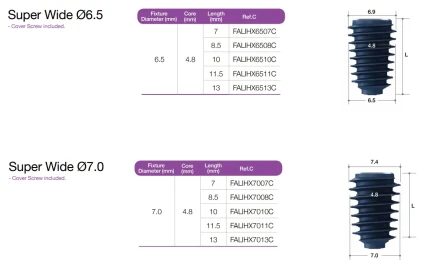

Sizes:
Implant Diameter:3.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:5.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:5.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:6.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Implant Diameter:6.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Implant Diameter:7.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.

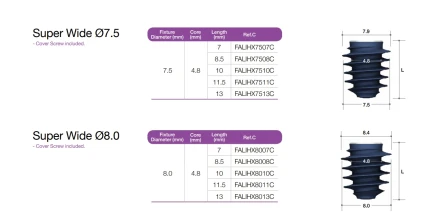

Implant Diameter:7.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
Implant Diameter:8.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm.
