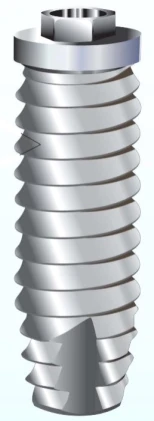

Bio Lok Micro Lok Hex 4.0 (4.1)

Bio Lok Micro Lok Hex 4.0 (4.1) - 1
Bio Lok Micro Lok Hex 4.0 (4.1) - 2
Bio Lok Micro Lok Hex 4.0 (4.1) - 3
Bio Lok Micro Lok Hex 4.0 (4.1) - 4
Bio Lok Micro Lok Hex 4.0 (4.1) - 5
-
Manufacturer:
Site: BioHorizons
Country: United States
Products: BioHorizons
Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex



Cervical Features: 1.0mm machined collar.

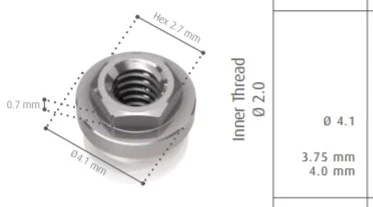

Platform to Abutment Connection: External Hexagon. Hexagon Diameter:2.7mm. Hexagon Height:0.7mm. Bore Diameter:M2. Platform Diameter:4.1mm.

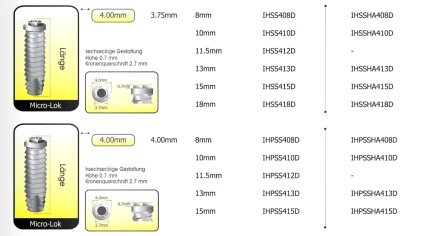

Implant Diameter: 3.75mm.

Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,18.0mm.

Implant Diameter: 4.0mm.

Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
