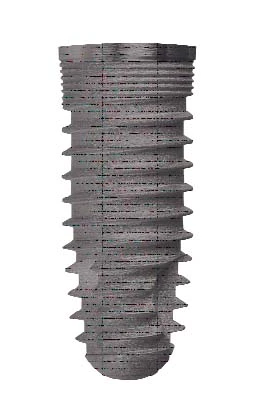

BT-Tite CV2 (5.5)

-
Manufacturer:
Country: Italy
Products: BTLock S.r.l.
Abutment Connection
internal
Abutment Connection Type
internal tri lobe, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Platform Color
purple
Implant Body Surface
sandblast, acid etching
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: Micro-thread and Acid Etched. Polished Height:0.3mm Above.
Platform to Abutment Connection: Internal Hexagon. Hexagon Width 2.55mm. Internal Tri-lobe. Tri-lobe Width 2.88mm.
Platform Diameter 5.7mm. Internal Bevel.
Sizes: Implant Diameter:5.5mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
