Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal octagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
square
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 3)
Implant Body Thread: Double Thread.
Implant Cervical Features: Polished 0.7mm Height.
Platform to Abutment Connection: Internal Morse Taper 6 Degrees. Internal Octagon. Second Internal Morse Taper 6 Degrees.
20 Degrees External Bevel.

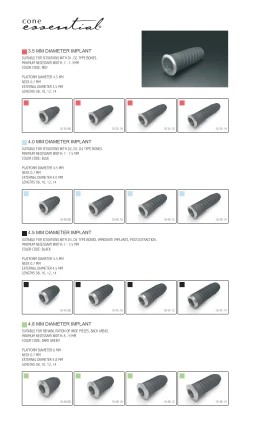

Sizes:
Platform Diameter:4.5mm.
Implant Diameter:3.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Platform Diameter:6.0mm.
Implant Diameter:4.8mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Cervical Features: Polished 0.7mm Height.
Platform to Abutment Connection: Internal Morse Taper 6 Degrees. Internal Octagon. Second Internal Morse Taper 6 Degrees.
20 Degrees External Bevel.
Sizes:
Platform Diameter:4.5mm.
Implant Diameter:3.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Platform Diameter:6.0mm.
Implant Diameter:4.8mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
