Abutment Connection
external
Abutment Connection Type
external hex, external morse taper
Implant Body Shape
tapered, cylinder
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)

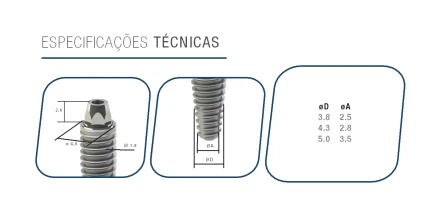

Implant to Abutment Connection: External Hexagon. External Morse Taper. Taper Height-2.6mm.
Platform Diameter-4.0mm. Internal Thread-M1.8

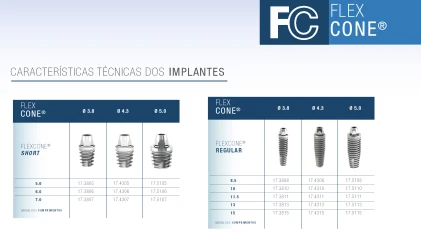

Sizes:
FC Regular:
Implant Diameter:3.8mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.3mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:5.0mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
FC Short:
Implant Diameter:3.8mm. Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:4.3mm. Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:5.0mm. Implant Length:5.0mm,6.0mm,7.0mm.
Platform Diameter-4.0mm. Internal Thread-M1.8
Sizes:
FC Regular:
Implant Diameter:3.8mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.3mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:5.0mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
FC Short:
Implant Diameter:3.8mm. Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:4.3mm. Implant Length:5.0mm,6.0mm,7.0mm.
Implant Diameter:5.0mm. Implant Length:5.0mm,6.0mm,7.0mm.
Implants with Compatible Platforms
