Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Platform Color
pink
Implant Body Surface
ASD (Anodic Spark Deposition)
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: Pink Collar.

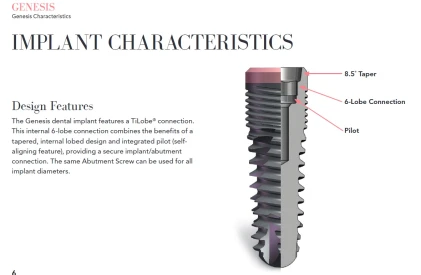

Platform to Abutment Connection: Internal Morse Taper 8.5 deg. Internal Six-Lobe Below the Taper.
Built-in Guiding Pilots.
Platform Diameter-5.5mm.

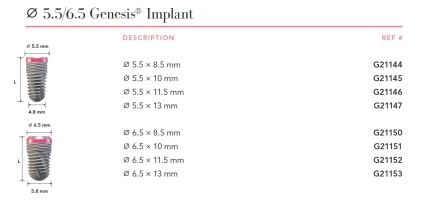

Sizes: Implant Diameter:5.5mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm.
Platform to Abutment Connection: Internal Morse Taper 8.5 deg. Internal Six-Lobe Below the Taper.
Built-in Guiding Pilots.
Platform Diameter-5.5mm.
Sizes: Implant Diameter:5.5mm. Implant Length:8.5mm,10.0mm,11.5mm,13.0mm.
Implants with Compatible Platforms
