Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal octagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped

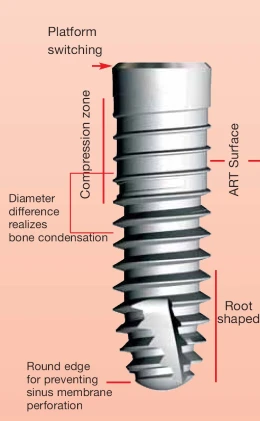

Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)
Implant Cervical Features: 0.2mm Smooth External Bevel.
Implant to Abutment Connection: Internal Octagon and Conical Connection.

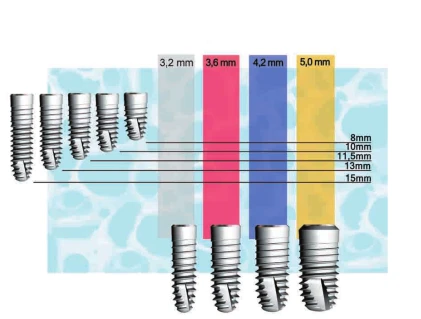

Sizes:Implant Diameter:3.2mm,3.6mm, 4.2mm, 5.0mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant to Abutment Connection: Internal Octagon and Conical Connection.
Sizes:Implant Diameter:3.2mm,3.6mm, 4.2mm, 5.0mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
