Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
cylinder, tapered
Implant Body Features
threaded
Implant Body Thread
buttress, V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: platform switching.

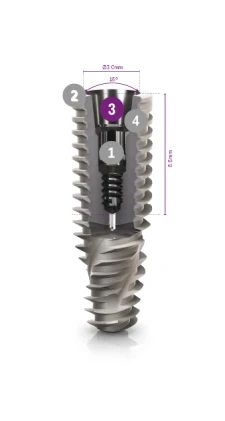

Platform to Abutment Connection: Internal morse taper 16 degrees with internal indexation. Socket diameter: 3.0mm. Internal bore: 1.6mm

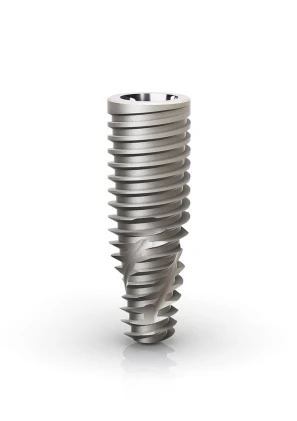

Implant Body Shape: hybrid implant design- Tapered 2-12 degrees coronal part. 16 degrees apical part.

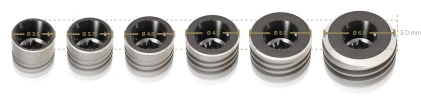

Sizes: Implant Diameter: 3.5mm, 3.75mm, 4.0mm, 4.3mm, 5.0mm. Implant Length: 8.0mm, 10.0mm, 11.5mm, 13.0mm, 16.0mm, 18.0mm.

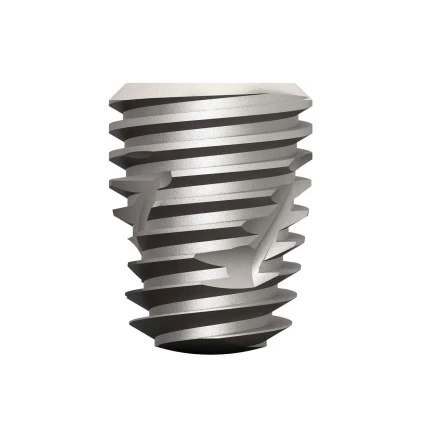

Implant Diameter:6.0mm. Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm.
Implants with Compatible Platforms
