Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
sandblast
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant Body Surface: Blast With Aluminum Oxide.

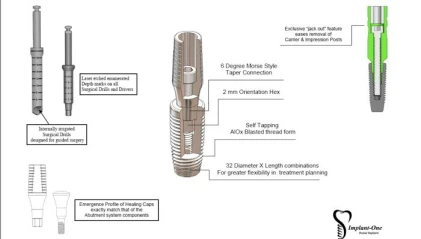

Platform to Abutment Connection: Internal Morse Taper 6 Degrees. 3 Degrees per Side.
Internal Hexagon Below Taper. Hexagon Depth-2.0mm.
Wide Platform-IT200.
Sizes:
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter4.25mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Platform to Abutment Connection: Internal Morse Taper 6 Degrees. 3 Degrees per Side.
Internal Hexagon Below Taper. Hexagon Depth-2.0mm.
Wide Platform-IT200.
Sizes:
Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter4.25mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
