Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant cervical Features: Micro-thread.
Platform to Abutment Connection: Internal Hexagon. Hexagon Depth-1.9mm. Internal Bevel.

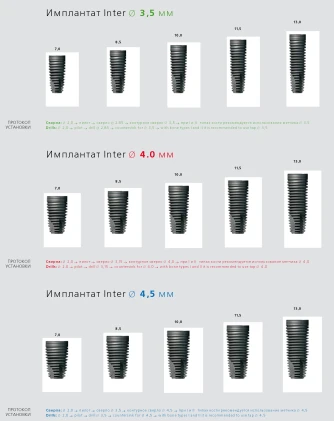

Sizes: Implant Diameter:3.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:5.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Platform to Abutment Connection: Internal Hexagon. Hexagon Depth-1.9mm. Internal Bevel.
Sizes: Implant Diameter:3.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.5mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:5.0mm. Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
