Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
buttress, V-shaped, reverse buttress
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Platform Color
purple
Implant Body Surface
TiO2 blast+fluoride hydroflouric acid
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI), titanium alloy grade 5 (Ti6Al4V)

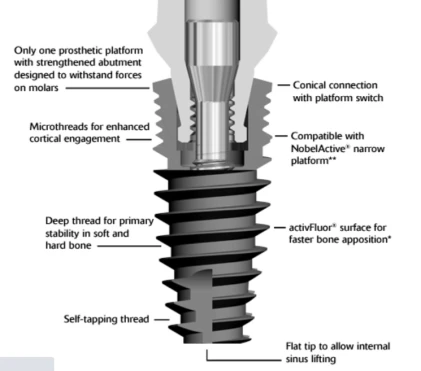

Implant to Abutment Connection: Morse Taper+Anti Rotation Internal Hexagon.
Platform Diameter:3.5mm.
Sizes:
Implant Diameter:3.5mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

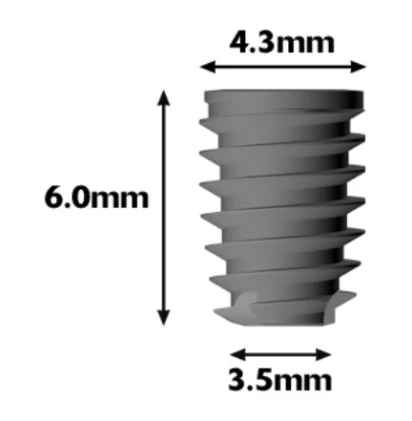

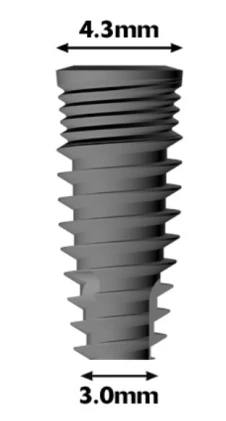

Implant Diameter:4.3mm.
Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

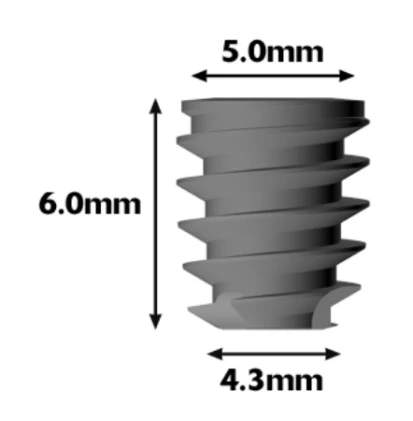

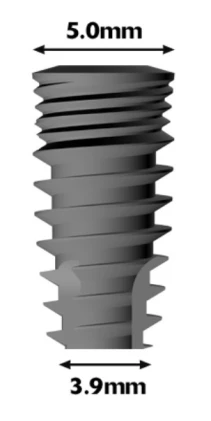

Implant Diameter:5.0mm.
Implant Length:6.0mm,8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.

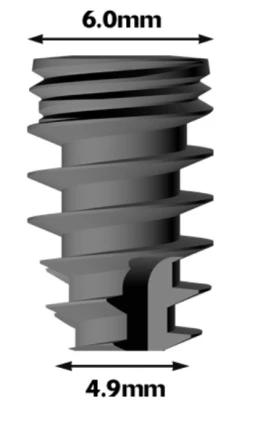

Implant Diameter:6.0mm.
Implant Length:6.0mm,8.0mm,10.0mm,11.5mm.

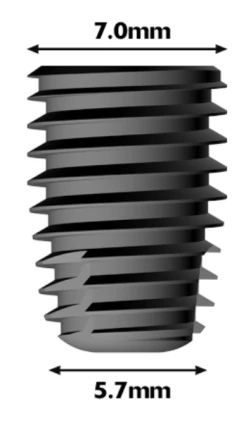

Implant Diameter:7.0mm.
Implant Length:6.0mm,8.0mm,10.0mm,11.5mm.
Implant Length:6.0mm,8.0mm,10.0mm,11.5mm.
