Abutment Connection
internal
Abutment Connection Type
internal hex

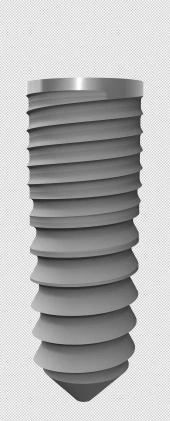

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
cone apex
Implant Body Surface
acid etching, sandblast
Implant Material
commercially pure titanium (grade 4)

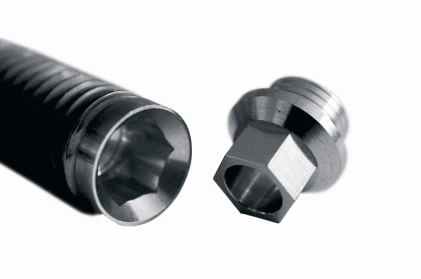

Platform to Abutment Connection: Internal Hexagon and Conical Seating 45 Deg.
Sizes:Implant Diameter: 3.75mm. Platform Diameter: 3.7mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter: 4.1mm. Platform Diameter: 4.1mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter: 4.5mm. Platform Diameter: 4.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter: 5.5mm. Platform Diameter: 5.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Sizes:Implant Diameter: 3.75mm. Platform Diameter: 3.7mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter: 4.1mm. Platform Diameter: 4.1mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter: 4.5mm. Platform Diameter: 4.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter: 5.5mm. Platform Diameter: 5.5mm. Implant Length: 8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
