Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Threads: Double Thread. Thread Pitch-2.2mm.

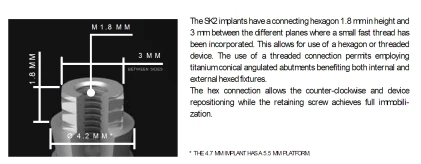

Platform to Abutment Connection: External Hexagon. Hexagon Width:3.0mm. Hexagon Height:1.8mm.
Sizes: Platform Diameter:4.2mm. Implant Diameter: 3.3mm,3.8mm,4.2mm.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Platform to Abutment Connection: External Hexagon. Hexagon Width:3.0mm. Hexagon Height:1.8mm.
Sizes: Platform Diameter:4.2mm. Implant Diameter: 3.3mm,3.8mm,4.2mm.
Implant Length:8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implants with Compatible Platforms
