Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
blasted with hydroxylapatite, HA (hydroxyapatite)

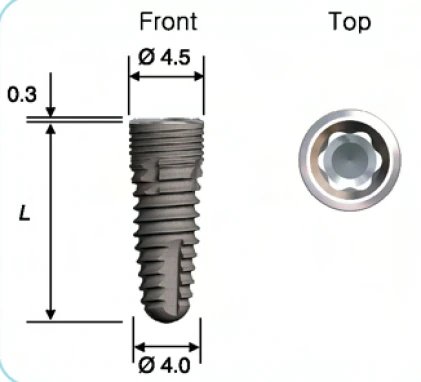

Implant Body Threads: Pitch 0.8mm. Implant Neck Threads: Double Lead Thread. Pitch 0.4mm. Implant Cervical Features: Polished 0.3mm Height. Platform to Abutment Connection: Internal Morse Taper 8 deg. Internal Six Lobe. Platform Diameter 4.5mm. Sizes: Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implants with Compatible Platforms
