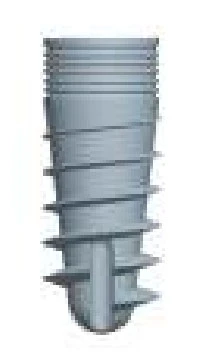

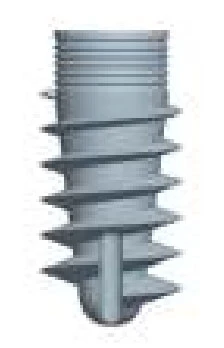

Stratego Conico (3.8,4.8)

Stratego Conico (3.8,4.8) - 1
Stratego Conico (3.8,4.8) - 2
Stratego Conico (3.8,4.8) - 3
Stratego Conico (3.8,4.8) - 4
Stratego Conico (3.8,4.8) - 5
Stratego Conico (3.8,4.8) - 6
-
Manufacturer:
Country: Italy
Products: ImplaMed S.r.l.
Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 4)
Implant Body Thread: Thread Pitch:Implant Diameter 3.8mm-2.0mm. Implant Diameter 4.8mm-2.2mm.

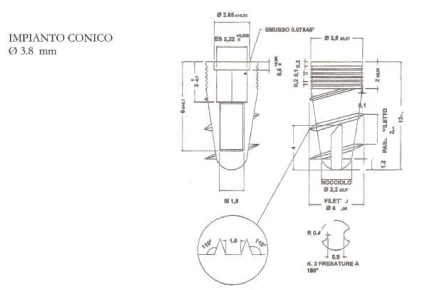

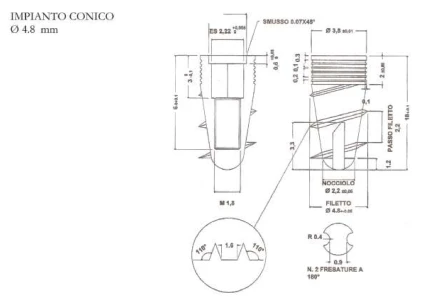

Platform to Abutment Connection: Internal Hexagon. Hexagon Diameter:2.22mm. Hexagon Depth:3.0mm. Bore Diameter:M1.8. Platform Diameter:3.8mm.
Sizes: Implant Diameter:3.8mm,4.8mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
