Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching, TPS (Titanium Plasma Sprayed)
Implant Material
commercially pure titanium (grade 2)
Implant Cervical Features: Smooth-1.0mm Height for TPS. 1.5mm Height for LIKEOS.
Implant Surface Treatment: TPS or LIKEOS-Acid Etching and Sandblast.
Implant Body Thread: Thread Pitch-1.1mm.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter: 3.5mm.

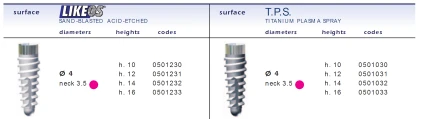

Sizes: Implant Diameter:4.0mm.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
Implant Surface Treatment: TPS or LIKEOS-Acid Etching and Sandblast.
Implant Body Thread: Thread Pitch-1.1mm.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter: 3.5mm.
Sizes: Implant Diameter:4.0mm.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
Implants with Compatible Platforms
