Abutment Connection
internal
Abutment Connection Type
internal octagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
zirconia
Implant Body Thread: Coronal Micro-thread Pitch-0.35mm. Body Thread pitch: 1.0mm.

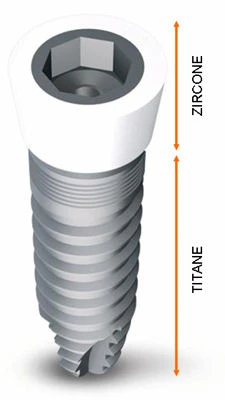

Implant Cervical Features: Zirconium. Polished. Height: 1.5mm,2.5mm.
Implant Body Material: Titanium.
Platform to Abutment Connection: Internal Octagon Depth 1.2mm. Morse Taper Below Octagon.

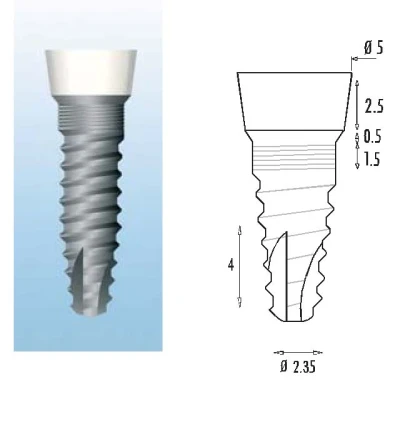

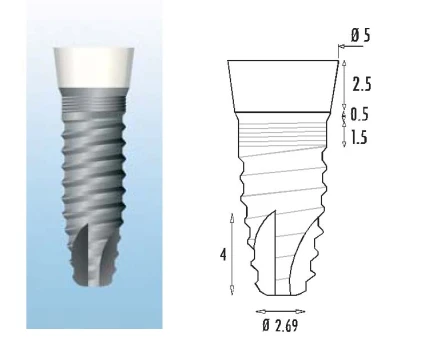

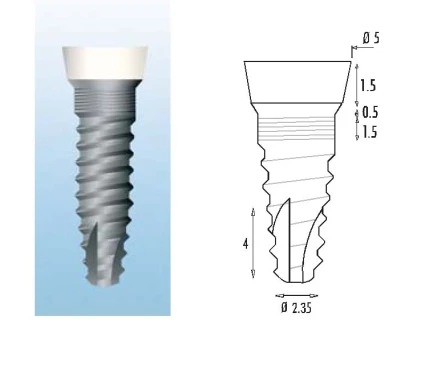

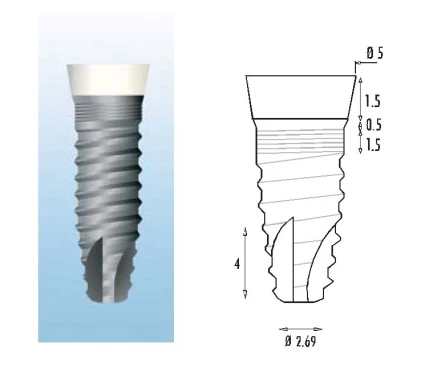

Sizes: Platform diameter:5.0mm, Implant diameter:3.5mm,4.0mm. Length: 8.0mm,10.5mm,13mm,15.5mm.
Implant Cervical Features: Zirconium. Polished. Height: 1.5mm,2.5mm.
Implant Body Material: Titanium.
Platform to Abutment Connection: Internal Octagon Depth 1.2mm. Morse Taper Below Octagon.
Sizes: Platform diameter:5.0mm, Implant diameter:3.5mm,4.0mm. Length: 8.0mm,10.5mm,13mm,15.5mm.
