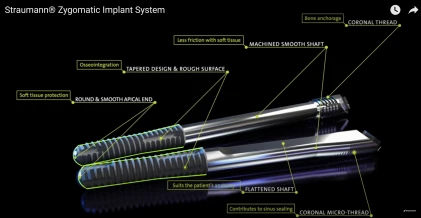

ZAGA Round

-
Manufacturer:
Site: Straumann AG
Country: Switzerland
Products: Straumann AG
Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered, cylinder
Implant Body Features
non-threaded, threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
angled
Implant Cervical Features
polished surface, unpolished surface

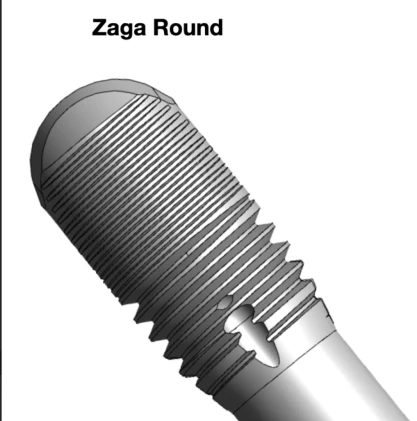

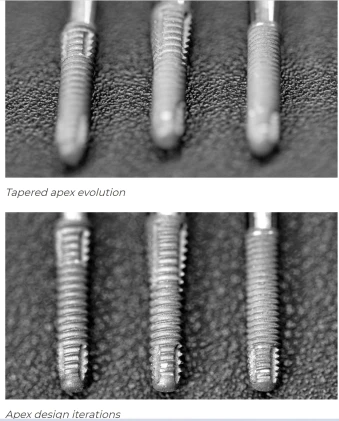

Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, machined/uncoated
Implant Material
commercially pure titanium (grade 4)

Implant Thread: thread pitch 0.8mm.

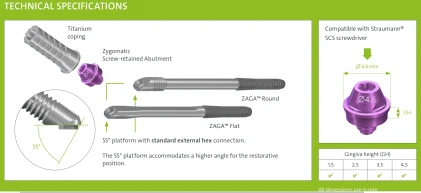

Platform to Abutment Connection: External Hexagon. Platform Diameter 4.0mm.

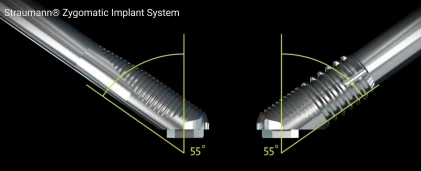

Implant Cervical Shape: Angled 55 deg.

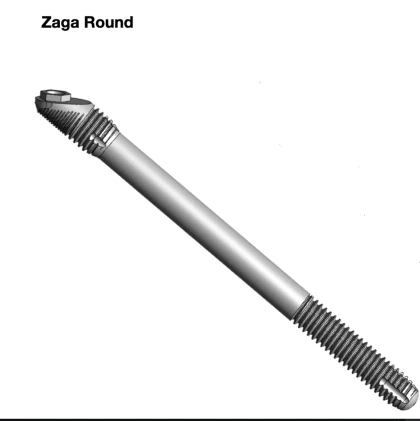

Implant Body Features: round mid portion section, to place intra-sinus.

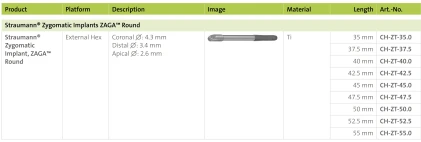

Sizes:

Implant Diameter: Coronal-4.3mm, Distal-3.4mm, Apical-2.6mm.

Implant Length: 35.0mm,37.5mm,40.0mm,42.5mm,45.0mm,47.5mm,50.0mm,52.5mm,55.0mm.
