Zeramex XT WP 5.5

Zeramex XT WP 5.5 - 1
Zeramex XT WP 5.5 - 2
Zeramex XT WP 5.5 - 3
Zeramex XT WP 5.5 - 4
Zeramex XT WP 5.5 - 5
Zeramex XT WP 5.5 - 6
Zeramex XT WP 5.5 - 7
Zeramex XT WP 5.5 - 8
Zeramex XT WP 5.5 - 9
Zeramex XT WP 5.5 - 10
Zeramex XT WP 5.5 - 11
Zeramex XT WP 5.5 - 12
Zeramex XT WP 5.5 - 13
-
Manufacturer:
Country: United States
Abutment Connection
internal
Abutment Connection Type
internal four spline

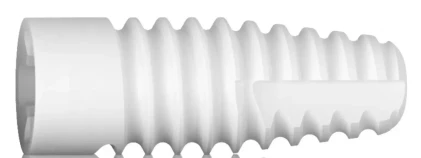

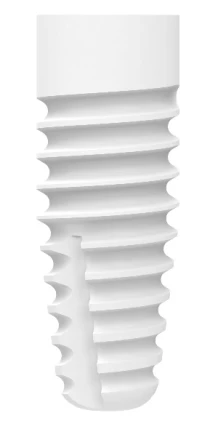

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped, square
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
unpolished surface, polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
acid etching, sandblast
Implant Material
zirconia

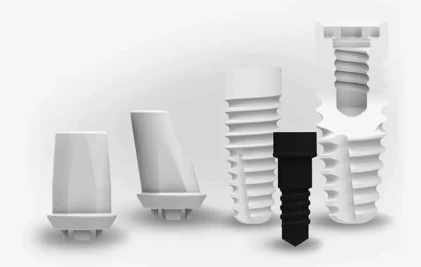

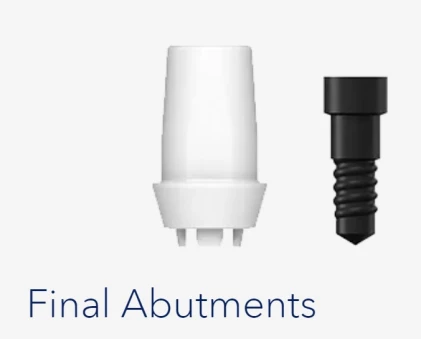

Platform to Abutment Connection: Four interlocks and Bolt it tube.

(Four cross-shaped retaining elements).

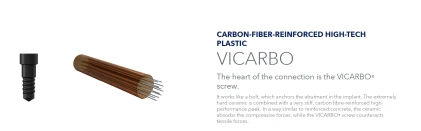

Vicarbo abutment screw.

Implant Material: Zirconium dioxide(ZrO2)

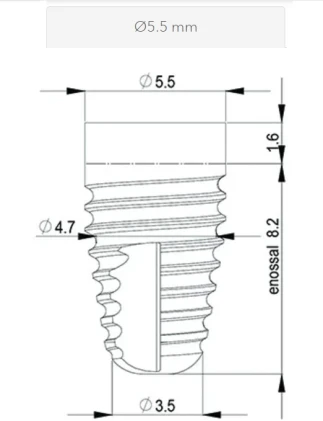

Sizes: Wide platform

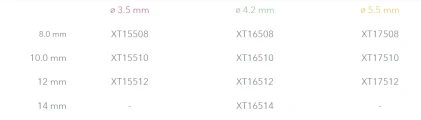

Implant Diameter: 5.5mm.

Implant Length:8.0mm,10.0mm,12.0mm.
