Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
oblong hole
Implant Apical Shape
domed apex
Implant Body Surface
blasted with hydroxylapatite
Implant Cervical Features: 0.5mm height Machined.
Implant Body Thread: Implant Diameter 3.0mm:Triple-Lead Thread. 1.2mm pitch. Implant Diameter: 3.7mm,4.7mm: Double-Lead Thread. 1.2mm pitch.

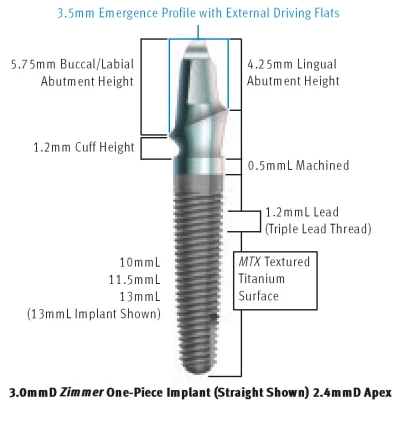

Sizes:Implant Diameter 3.0mm. Abutment Emergence Profile: 3.5mm. Implant Length: 10.0mm,11.5mm,13.0mm.

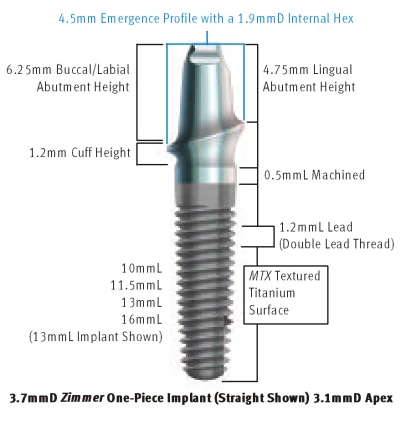

Implant Diameter 3.7mm. Abutment Emergence Profile: 4.5mm. Implant Length: 10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter 4.7mm. Abutment Emergence Profile: 5.5mm. Implant Length: 10.0mm,11.5mm,13.0mm.

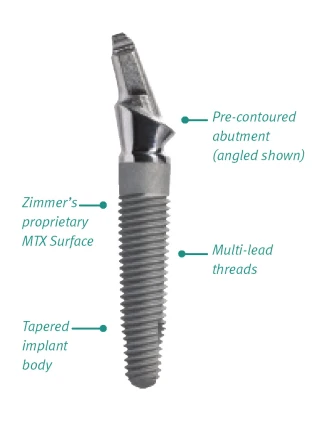

Zimmer One-Piece Implant-17deg.: 17 deg. Abutment.
Implant Body Thread: Implant Diameter 3.0mm:Triple-Lead Thread. 1.2mm pitch. Implant Diameter: 3.7mm,4.7mm: Double-Lead Thread. 1.2mm pitch.
Sizes:Implant Diameter 3.0mm. Abutment Emergence Profile: 3.5mm. Implant Length: 10.0mm,11.5mm,13.0mm.
Implant Diameter 3.7mm. Abutment Emergence Profile: 4.5mm. Implant Length: 10.0mm,11.5mm,13.0mm,16.0mm.
Implant Diameter 4.7mm. Abutment Emergence Profile: 5.5mm. Implant Length: 10.0mm,11.5mm,13.0mm.
Zimmer One-Piece Implant-17deg.: 17 deg. Abutment.
