Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six spline
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching
Implant Material
commercially pure titanium (grade 2)
Implant Cervical Features: Ankylos- Polished Surface. Ankylos Plus- Unpolished Surface.

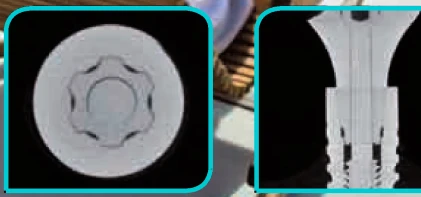

Platform to Abutment Connection: Morse Taper and 6 Indexing Grooves.
Sizes: Implant diameter:3.5mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm,17.0mm.
Implant diameter:4.5mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm,17.0mm.
Implant diameter:5.5mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm,17.0mm.
Implant diameter:7.0mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm.
Platform to Abutment Connection: Morse Taper and 6 Indexing Grooves.
Sizes: Implant diameter:3.5mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm,17.0mm.
Implant diameter:4.5mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm,17.0mm.
Implant diameter:5.5mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm,17.0mm.
Implant diameter:7.0mm. Implant Length:8.0mm,9.5mm,11mm,14.0mm.
Implants with Compatible Platforms
