Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal tri lobe

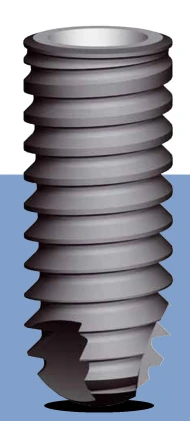

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
TCP(beta Tri-Calcium Phosphate coating)
Implant Material
titanium alloy grade 5 (Ti6Al4V)

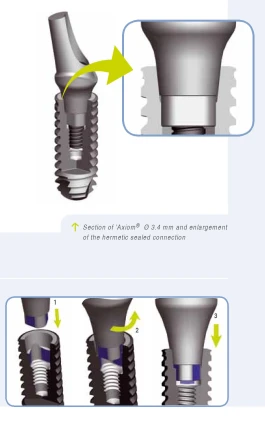

Platform to Abutment Connection: Internal Morse Taper. Taper Diameter-2.7mm.
Anti-rotation Internal Tri-lobe bellow Morse Taper. Internal Thread M1.6.
Platform Diameter: 3.4mm, 4.0mm, 4.6mm,5.2mm.
Sizes: Implant Diameter:3.4mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.0mm,4.6mm,5.2mm. Implant Length:6.5mm,8.0mm,10.0mm,12.0mm,14.0mm.
Anti-rotation Internal Tri-lobe bellow Morse Taper. Internal Thread M1.6.
Platform Diameter: 3.4mm, 4.0mm, 4.6mm,5.2mm.
Sizes: Implant Diameter:3.4mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.0mm,4.6mm,5.2mm. Implant Length:6.5mm,8.0mm,10.0mm,12.0mm,14.0mm.
