Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
cone apex
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

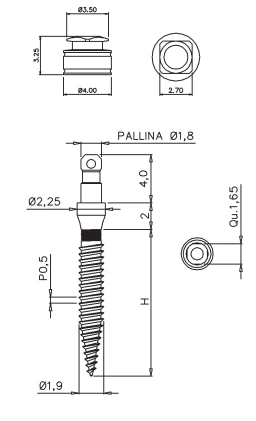

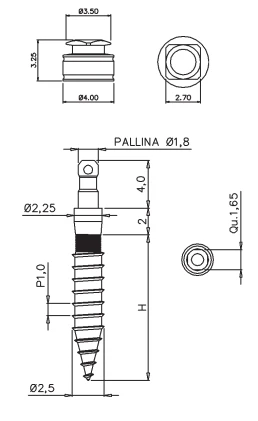

Implant Body Threads: Implant Diameter 1.9mm.-Threads Pitch 0.5mm.; Implant Diameter 2.5mm.-Threads Pitch 1.0mm. Sizes:Implant Diameter 1.9mm, 2.5mm. Implant Length: 10.0mm,11.5mm,13.5mm.
