Abutment Connection
internal
Abutment Connection Type
internal four spline, internal morse taper, internal octagon

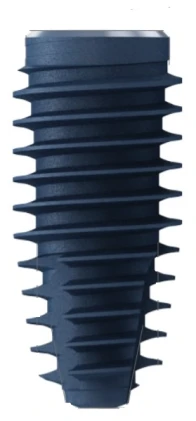

Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA Ca layer
Implant Material
commercially pure titanium (grade 4)

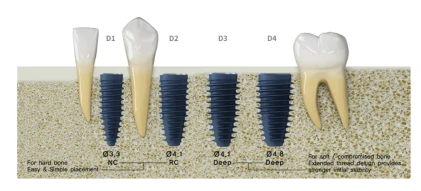

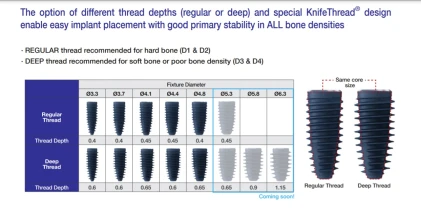

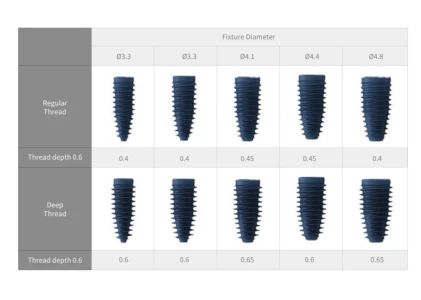

Implant Body Thread: two thread depth options.

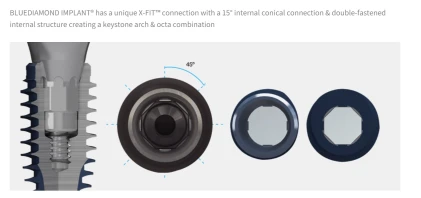

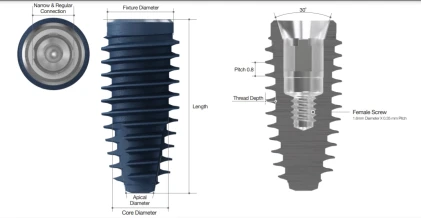

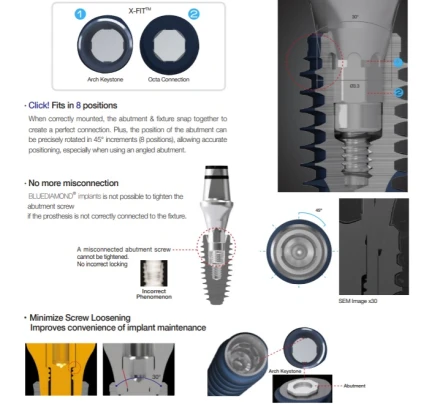

Platform to Abutment Connection: Internal Morse Taper 15 deg. Internal Four Spline, Internal Octagon 3.3mm diameter. Internal thread M1.6x0.35mm

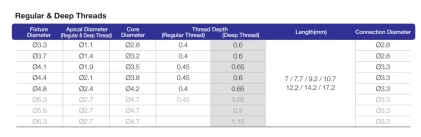

Sizes:
Implant Diameter: 4.1mm, 4.4mm, 4.8mm, 5.3mm, 6.3mm
Implant Length: 7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,18.0mm.
