Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six lobe
Implant Body Shape
tapered
Implant Body Features
non-threaded
Implant Body Thread
V-shaped, square
Implant Cervical Shape
straight transition from body, narrow
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch), SLA and NaCl solution
Implant Material
titanium zirconium alloy
Implant Body Thread: Double Thread.

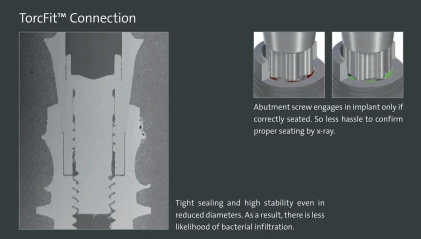

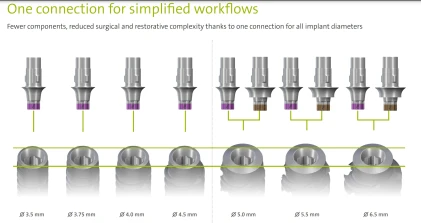

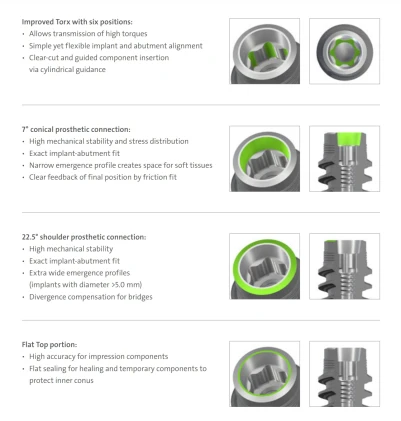

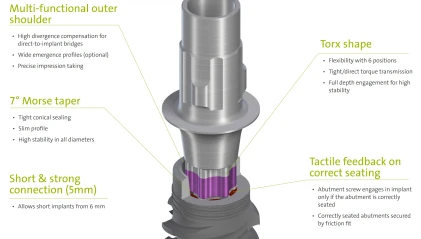

Platform to Abutment Connection: Internal Morse Taper 7 deg. Internal Six Lobe. Platform Diameter:2.9mm. Connection Diameter:2.7mm.
22.5 deg Shoulder Prosthetic Connection.

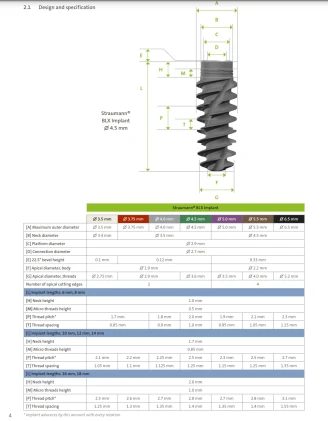

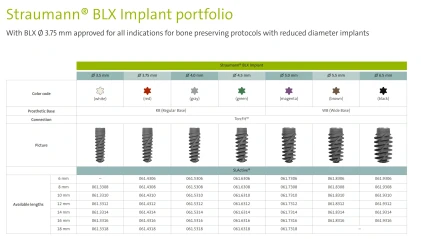

Sizes:
Implant Diameter: 3.5mm.
Implant Length: 8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implant Diameter: 3.75mm, 4.0mm, 5.0mm.
Implant Length: 6.0mm,8.0mm,10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implant Diameter: 5.5mm, 6.5mm.
Implant Length: 6.0mm,8.0mm,10.0mm,12.0mm.
Implant Material: Roxolid- titanium zirconium alloy. (titanium 85%, zirconium 15%).
