Abutment Connection
internal
Abutment Connection Type
internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch), SLA and NaCl solution
Implant Material
commercially pure titanium (grade 4), titanium zirconium alloy
Implant Body Features Threads: V Shape. Implant Diameter 3.3mm-Pitch 0.8mm.
Platform to Abutment Connection: Morse Taper and 4 Grooves.

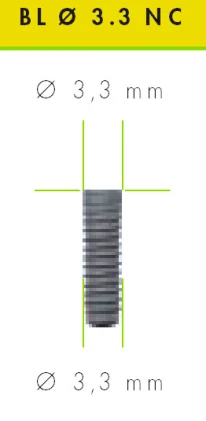

Sizes: Implant Diameter: 3.3mm. Length: 8.0mm,10.0mm,12.0mm,14.0mm.
Implant Material: Roxolid- Titanium Zirconium Alloy- available for implants diameter 3.3mm.
Platform to Abutment Connection: Morse Taper and 4 Grooves.
Sizes: Implant Diameter: 3.3mm. Length: 8.0mm,10.0mm,12.0mm,14.0mm.
Implant Material: Roxolid- Titanium Zirconium Alloy- available for implants diameter 3.3mm.
Implants with Compatible Platforms
