Abutment Connection
internal
Abutment Connection Type
internal hex, internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)

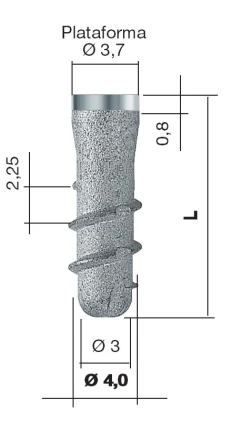

Implant Body Thread: Thread Pitch:2.25mm.
Implant Cervical Features: Polished Height:0.8mm.
Platform to Abutment Connection: Internal Morse Taper-Friction. Internal Hexagon-Cemented.

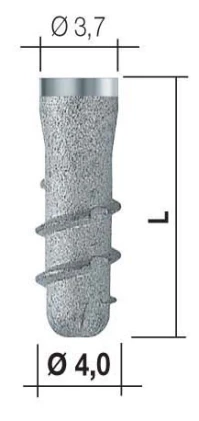

Sizes: Platform Diameter:3.7mm. Implant Diameter:4.0mm (3.0mm).
Implant Length:8.0mm,10.0mm,12.0mm,13.5mm,15.0mm.
Implant Cervical Features: Polished Height:0.8mm.
Platform to Abutment Connection: Internal Morse Taper-Friction. Internal Hexagon-Cemented.
Sizes: Platform Diameter:3.7mm. Implant Diameter:4.0mm (3.0mm).
Implant Length:8.0mm,10.0mm,12.0mm,13.5mm,15.0mm.
Implants with Compatible Platforms
