Abutment Connection
internal
Abutment Connection Type
internal morse taper
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)

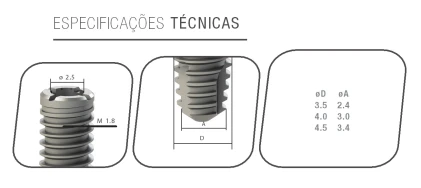

Implant to Abutment Connection: Internal Morse Taper. Socket Diameter 2.5mm.
Internal Thread M1.8.

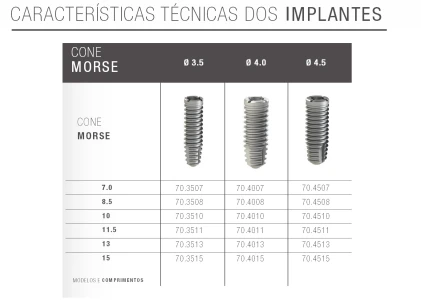

Sizes:
Implant Diameter:3.5mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.5mm
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Internal Thread M1.8.
Sizes:
Implant Diameter:3.5mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:4.5mm
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
