Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)

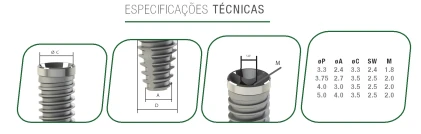

Implant to Abutment Connection: Internal Morse Taper 40 Deg. Internal Hexagon. Hexagon Diameter 2.5mm.
Platform Diameter 3.5mm. Internal Thread M2.0.

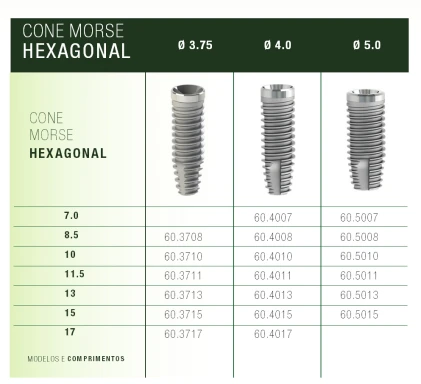

Sizes:
Implant Diameter:3.75mm.
Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:4.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:5.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Platform Diameter 3.5mm. Internal Thread M2.0.
Sizes:
Implant Diameter:3.75mm.
Implant Length:8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:4.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:5.0mm.
Implant Length:7.0mm,8.5mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implants with Compatible Platforms
