Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Material
commercially pure titanium (grade 4)

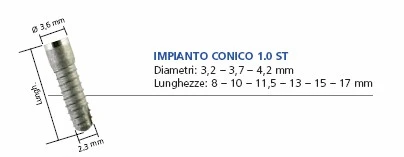

Implant Cervical Features: Polished 0.8mm Height.
Implant Body Thread: Pitch 1.0mm.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter:3.6mm.

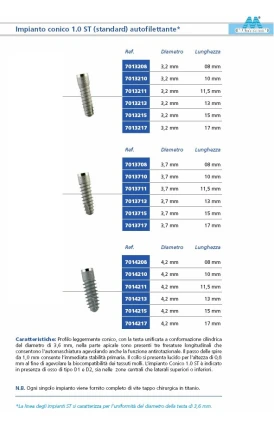

Sizes: Implant Diameter:3.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:3.7mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Body Thread: Pitch 1.0mm.
Platform to Abutment Connection: Internal Hexagon. Platform Diameter:3.6mm.
Sizes: Implant Diameter:3.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:3.7mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:4.2mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implants with Compatible Platforms
