Abutment Connection
internal
Abutment Connection Type
internal octagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)

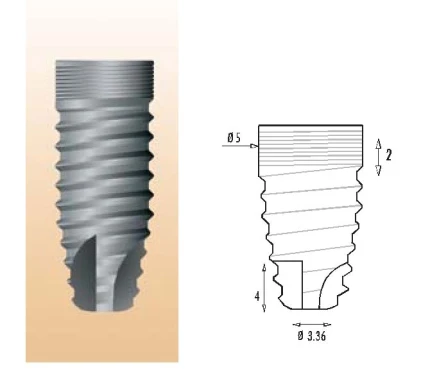

Implant Body Thread: Pitch-1.0mm.
Implant Cervical Features: Coronal Micro thread Pitch-0.35mm.
Implant Body Material: Titanium.

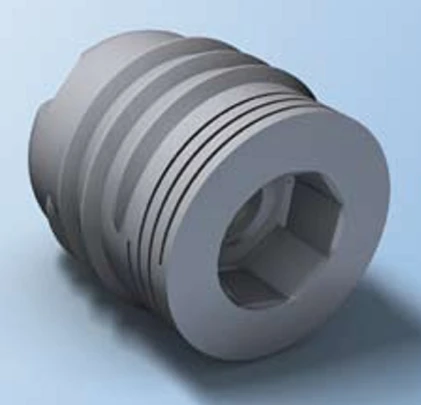

Platform to Abutment Connection: Internal Octagon Depth 1.2mm. Morse Taper Below Octagon.
Sizes: Platform diameter:5.0mm, Implant diameter:5.0mm. Length: 8.0mm,10.5mm,13mm,15.5mm.
From 2009: BabyConnect- Implant Length:6.0mm.
Implant Cervical Features: Coronal Micro thread Pitch-0.35mm.
Implant Body Material: Titanium.
Platform to Abutment Connection: Internal Octagon Depth 1.2mm. Morse Taper Below Octagon.
Sizes: Platform diameter:5.0mm, Implant diameter:5.0mm. Length: 8.0mm,10.5mm,13mm,15.5mm.
From 2009: BabyConnect- Implant Length:6.0mm.
Implants with Compatible Platforms
