Abutment Connection
internal
Abutment Connection Type
internal pentagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
square
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
flat apex
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant Cervical Features: 3.0mm height Machined.
Implant to Abutment Connection: Internal Pentagon. Abutment Cemented.

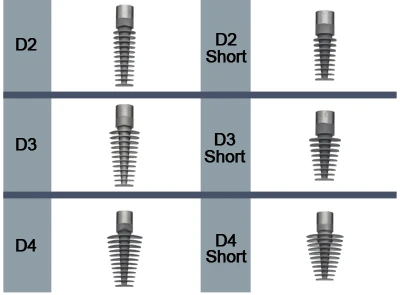

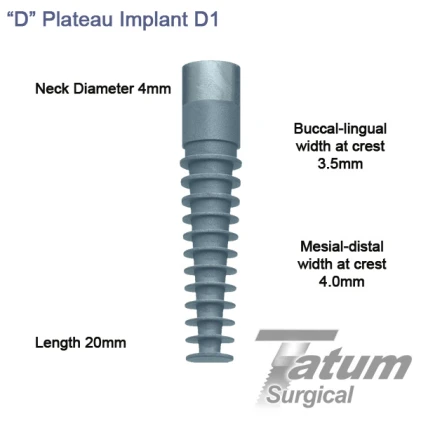

Sizes:D1-Implant Diameter 4.0mm. Implant Length: 20.0mm.

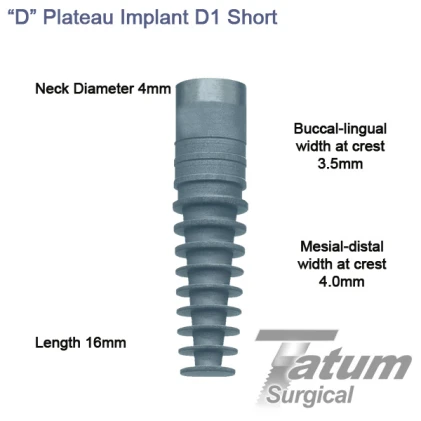

D1 Short-Implant Diameter 4.0mm. Implant Length: 16.0mm.
D2-Implant Diameter 4.5mm. Implant Length: 20.0mm.

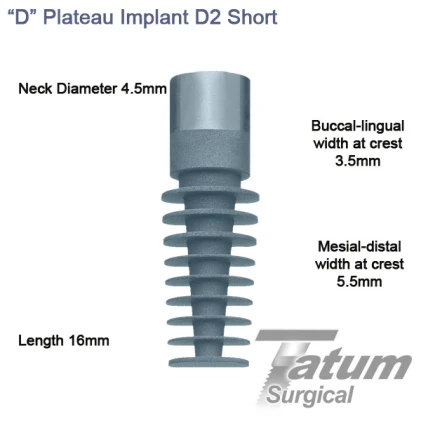

D2 Short-Implant Diameter 4.5mm. Implant Length: 16.0mm.

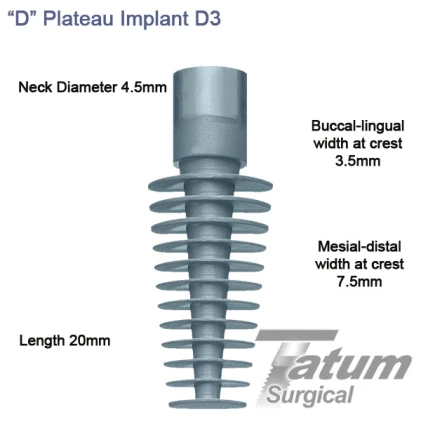

D3-Implant Diameter 4.5mm. Implant Length: 20.0mm.
D3 Short-Implant Diameter 4.5mm. Implant Length: 16.0mm.
D4-Implant Diameter 4.5mm. Implant Length: 20.0mm.

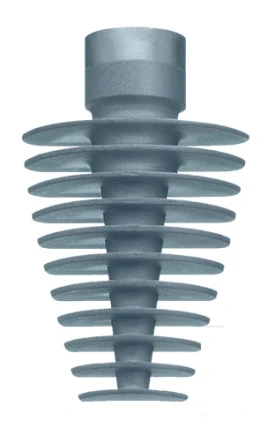

D4 Short-Implant Diameter 4.5mm. Implant Length: 16.0mm.
Implant to Abutment Connection: Internal Pentagon. Abutment Cemented.
Sizes:D1-Implant Diameter 4.0mm. Implant Length: 20.0mm.
D1 Short-Implant Diameter 4.0mm. Implant Length: 16.0mm.
D2-Implant Diameter 4.5mm. Implant Length: 20.0mm.
D2 Short-Implant Diameter 4.5mm. Implant Length: 16.0mm.
D3-Implant Diameter 4.5mm. Implant Length: 20.0mm.
D3 Short-Implant Diameter 4.5mm. Implant Length: 16.0mm.
D4-Implant Diameter 4.5mm. Implant Length: 20.0mm.
D4 Short-Implant Diameter 4.5mm. Implant Length: 16.0mm.
Implants with Compatible Platforms
