Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal dodecagon, internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
angled
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
Blast with Alumina particles (Al203)

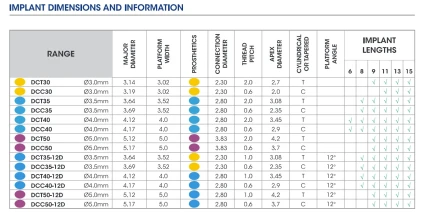

Platform to Abutment Connection: Internal Morse Taper 11 degrees, Bellow it Internal Double Hexagon. Connection Diameter 2.30mm. Internal Thread 1.4mm. Platform Width 3.52mm.
Implant Cervical Shape: Angled 12 degrees.
Sizes:
Implant Diameter: 3.5mm.

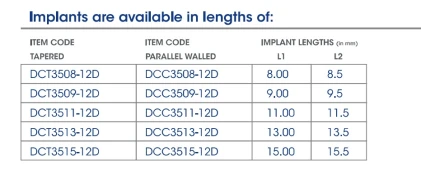

Implant Length:8.0mm,9.0mm,11.0mm,13.0mm,15.0mm.
Implants with Compatible Platforms
