Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
SLA (Sand blast Large grit Acid etch)
Implant Material
commercially pure titanium (grade 4)
Implant Cervical Features: Polished 1.0mm Height.
Platform to Abutment Connection: Internal Hexagon.
Sizes: Implant Platform Diameter:4.3mm.

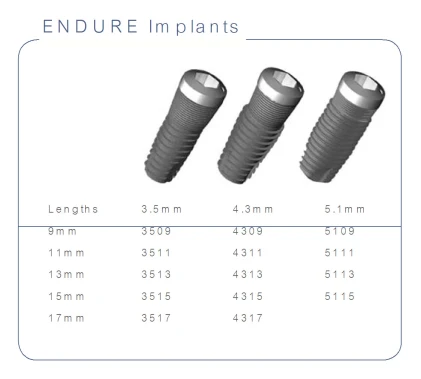

Implant Diameter:3.5mm,4.3mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Platform Diameter:5.1mm.
Implant Diameter:5.1mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm.
Platform to Abutment Connection: Internal Hexagon.
Sizes: Implant Platform Diameter:4.3mm.
Implant Diameter:3.5mm,4.3mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm,17.0mm.
Implant Platform Diameter:5.1mm.
Implant Diameter:5.1mm. Implant Length:9.0mm,11.0mm,13.0mm,15.0mm.
Implants with Compatible Platforms
