Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six spline
Implant Body Shape
tapered, cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Body Surface
TiO2 blast+fluoride hydroflouric acid

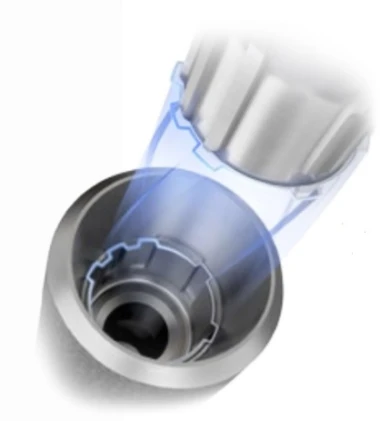

Platform to Abutment Connection: Internal Morse Taper and anti-rotation Internal Six Spline.
Internal Thread-M1.8 Yellow.

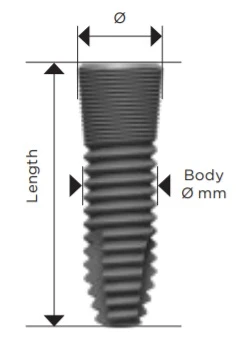

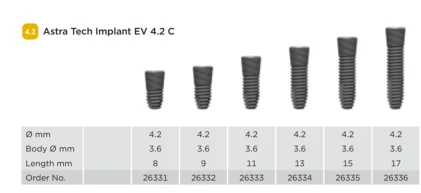

Sizes:
Implant Diameter: 4.2mm.

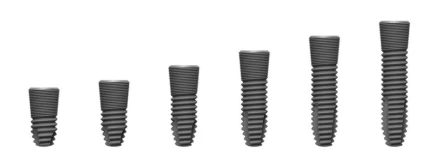

Implant Length: 8.0mm,9.0mm,11.0mm,13.0mm,15.0mm,17mm.
Implants with Compatible Platforms
