Abutment Connection
external, internal
Abutment Connection Type
internal hex, external morse taper
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, wider than body
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Platform Color
yellow
Implant Body Surface
sandblast, acid etching

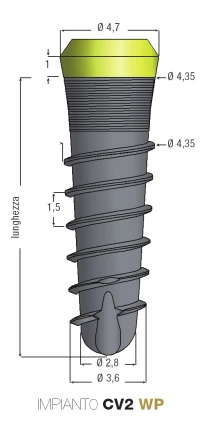

Implant Body Thread: Thread Pitch-1.5mm.
Implant Cervical Features: Polished 1.0mm Height. Cervical micro-thread.

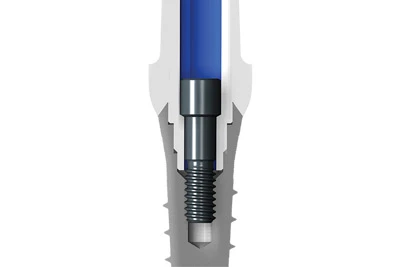

Platform to Abutment Connection: Internal Hexagon. Hexagon Width 2.5mm. External Morse Taper.
Platform Diameter:4.7mm.
Sizes: Implant Diameter:4.35mm.
Implant Length:9.0mm,11.0mm,13.0mm,15.0mm.
Implant Cervical Features: Polished 1.0mm Height. Cervical micro-thread.
Platform to Abutment Connection: Internal Hexagon. Hexagon Width 2.5mm. External Morse Taper.
Platform Diameter:4.7mm.
Sizes: Implant Diameter:4.35mm.
Implant Length:9.0mm,11.0mm,13.0mm,15.0mm.
