Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

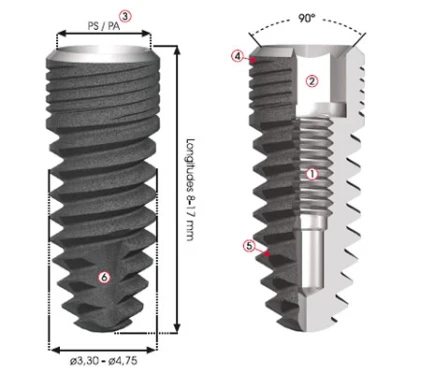

Implant Apical Features: 3 Grooves.
Implant Cervical Features: Micro-thread.
Implant Body Thread: Double Thread. Thread Pitch 1.6mm.
Platform to Abutment Connection: Internal Hexagon. Hexagon Width:2.45mm. Hexagon Depth:1.5mm.
Bore Diameter:M1.8.0x0.35mm. Internal Bevel 45 degrees. External Bevel.
Platform Diameter:3.5mm.

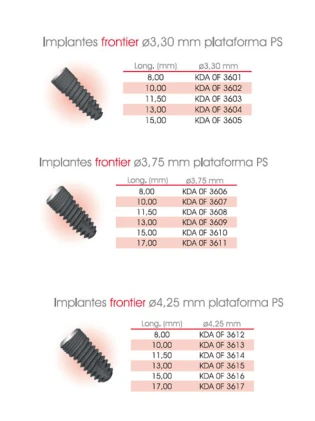

Sizes:
Implant Diameter:3.3mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:4.25mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Cervical Features: Micro-thread.
Implant Body Thread: Double Thread. Thread Pitch 1.6mm.
Platform to Abutment Connection: Internal Hexagon. Hexagon Width:2.45mm. Hexagon Depth:1.5mm.
Bore Diameter:M1.8.0x0.35mm. Internal Bevel 45 degrees. External Bevel.
Platform Diameter:3.5mm.
Sizes:
Implant Diameter:3.3mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.
Implant Diameter:3.75mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
Implant Diameter:4.25mm. Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,17.0mm.
