Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal octagon
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved

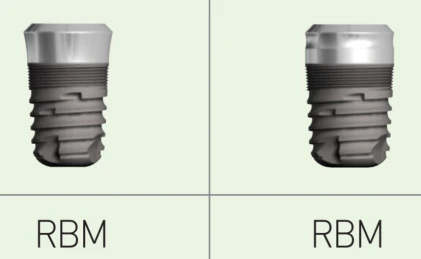

Implant Body Surface
RBM(Resorbable Blast Media)
Implant Body Tread: Double thread. Pitch 0.9mm.

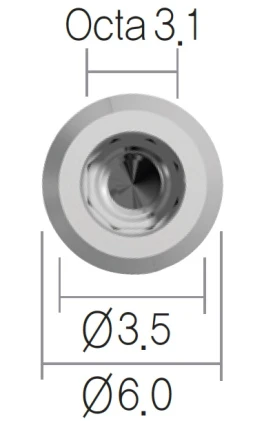

Platform to Abutment Connection: Internal Morse Taper 8 deg. Morse Taper diameter 3.5mm. Internal Octagon Width 3.1mm. External Beveled Shoulder 45 deg. Platform Diameter 6.0mm.

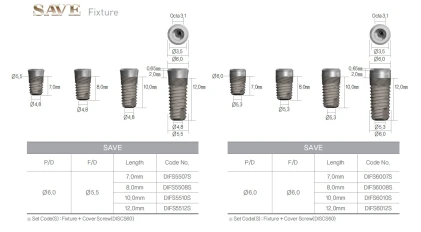

Sizes:

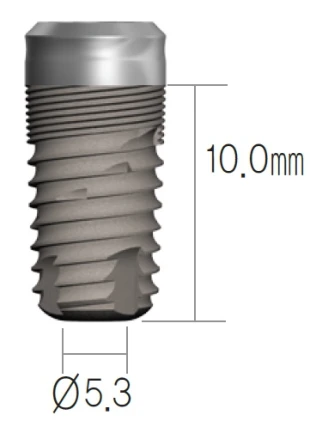

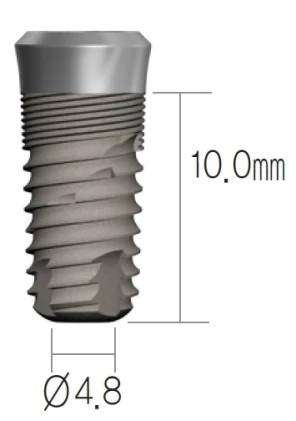

Implant Diameter: 5.5mm, 6.0mm
Implant Length:7.0mm,8.0mm,10.0mm,12.0mm.
