Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Shape
cone apex
Implant Body Surface
acid etching, sandblast
Implant Material
titanium alloy grade 5 (Ti6Al4V)
Implant Cervical Features:
Implant Diameter 2.2mm- Cervical Polished Height:2.0mm.
Implant Diameter 2.5mm- Cervical Polished Height:1.0mm.
Implant Mid Body Grooves.
Platform to Abutment Connection: One Piece. Ball Abutment or Crown & Bridge Abutment.

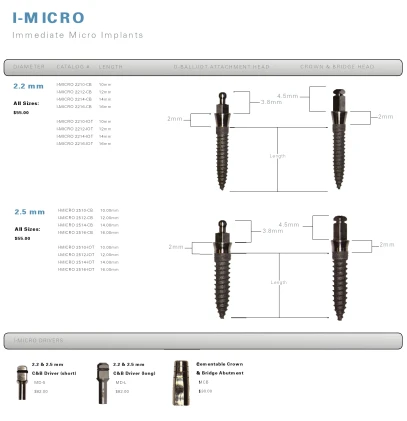

Sizes:
Implant Diameter:2.2mm.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
Implant Diameter:2.5mm.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
Implant Diameter 2.2mm- Cervical Polished Height:2.0mm.
Implant Diameter 2.5mm- Cervical Polished Height:1.0mm.
Implant Mid Body Grooves.
Platform to Abutment Connection: One Piece. Ball Abutment or Crown & Bridge Abutment.
Sizes:
Implant Diameter:2.2mm.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
Implant Diameter:2.5mm.
Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
