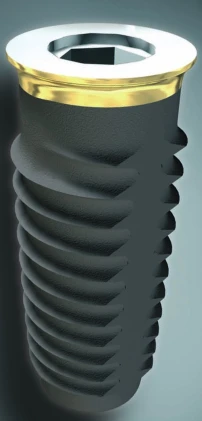

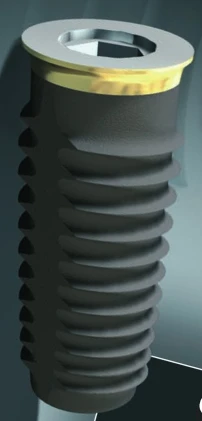

ID Max (4.0)

ID Max (4.0) - 1
ID Max (4.0) - 2
ID Max (4.0) - 3
ID Max (4.0) - 4
ID Max (4.0) - 5
ID Max (4.0) - 6
ID Max (4.0) - 7
-
Manufacturer:
Country: France
Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
sandblast, acid etching, TiO2 coated
Implant Material
titanium alloy grade 23 (Ti6Al4V-ELI)

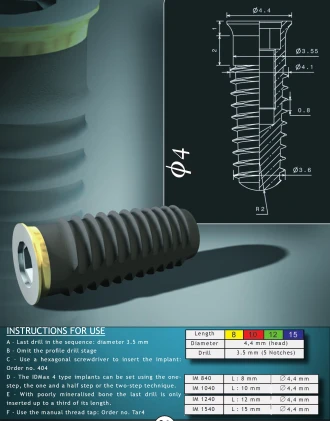

Implant Body Thread: Thread Pitch-0.8mm.
Platform to Abutment Connection: Internal Hexagon. Hexagon Depth:1.9mm. Platform Diameter:4.4mm.
Sizes: Implant Diameter:4.0mm. Implant Length:8.0mm,10.0mm,12.0mm,15.0mm.
