Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body, narrow
Implant Cervical Features
polished surface, unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Body Surface
Blast with Alumina particles (Al203)
Implant Material
commercially pure titanium (grade 4)

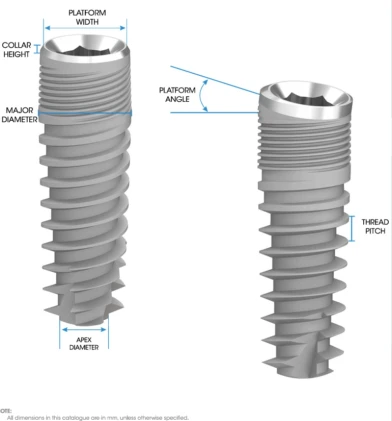

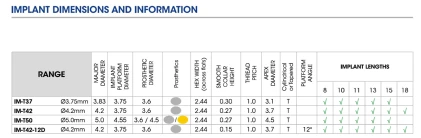

Platform to Abutment Connection: Implant Diameter 3.7mm, 4.2mm- Internal Hexagon. Hexagon Diameter:2.44mm. Platform Diameter:3.87mm. Prosthetic Diameter:3.6mm. Internal Thread:1.8mm.
Platform to Abutment Connection: Implant Diameter 5.0mm- Hexagon Diameter:2.44mm. Platform Diameter:4.5mm. Prosthetic Diameter:3.6mm/4.5mm. Internal Thread:1.8mm.

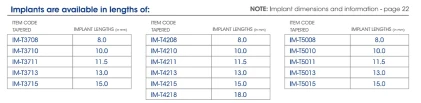

Sizes:

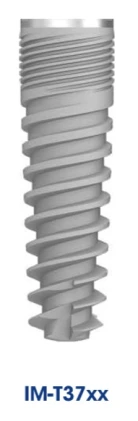

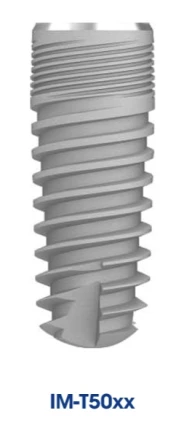

Implant Diameter: 3.7mm, 5.0mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm.

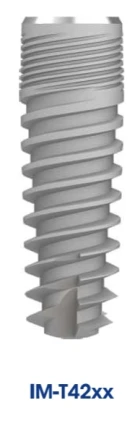

Implant Diameter: 4.2mm.
Implant Length:8.0mm,10.0mm,11.5mm,13.0mm,15.0mm,18.0mm.
Implants with Compatible Platforms
