Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal six lobe
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex

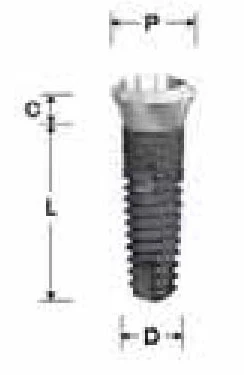

Implant Cervical Features: Polished 1.8mm or 2.0mm or 2.8mm Height.
Platform to Abutment Connection: Internal Morse Taper. Internal Six Lobe. Platform Diameter 4.8mm.

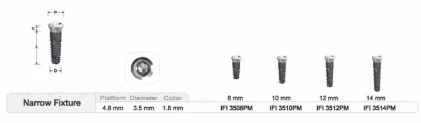

Sizes: Narrow-Implant Diameter:3.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Regular-Implant Diameter:4.1mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.

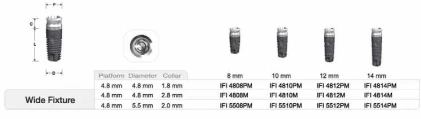

Wide-Implant Diameter:4.8mm,5.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Platform to Abutment Connection: Internal Morse Taper. Internal Six Lobe. Platform Diameter 4.8mm.
Sizes: Narrow-Implant Diameter:3.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Regular-Implant Diameter:4.1mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Wide-Implant Diameter:4.8mm,5.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
