Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
acid etching
Implant Material
commercially pure titanium (grade 4)

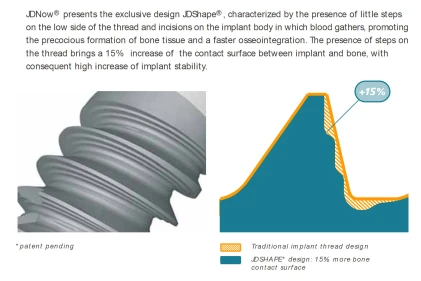

Implant Body Thread: Reverse Buttress. Steps On The Low Side Of The Thread And Incisions On The Implant Body.

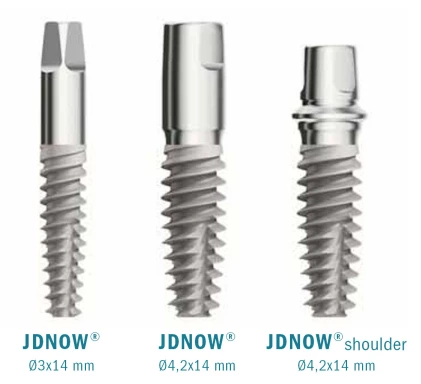

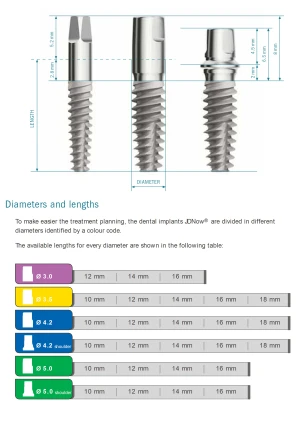

Sizes:
Implant Diameter:3.0mm. Implant Length:12.0mm,14.0mm,16.0mm.
Implant Diameter:3.5mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implant Diameter:4.2mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
4.2 Shoulder- Implant Diameter:4.2mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implant Diameter:5.0mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
5.0 Shoulder- Implant Diameter:5.0mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
Sizes:
Implant Diameter:3.0mm. Implant Length:12.0mm,14.0mm,16.0mm.
Implant Diameter:3.5mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implant Diameter:4.2mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
4.2 Shoulder- Implant Diameter:4.2mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm,18.0mm.
Implant Diameter:5.0mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
5.0 Shoulder- Implant Diameter:5.0mm. Implant Length:10.0mm,12.0mm,14.0mm,16.0mm.
