Abutment Connection
external
Abutment Connection Type
external morse taper

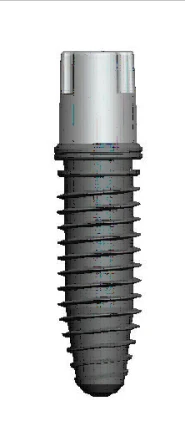

Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body, narrow, straight transition from body
Implant Cervical Features
polished surface
Implant Apical Shape
domed apex

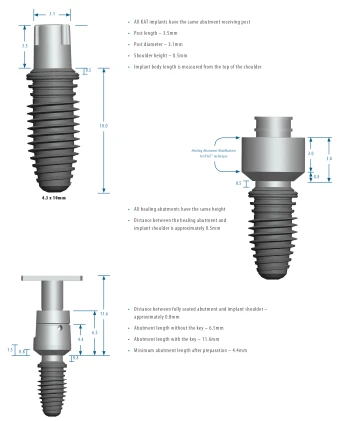

Platform to Abutment Connection: External Locking Taper 1.5 deg.

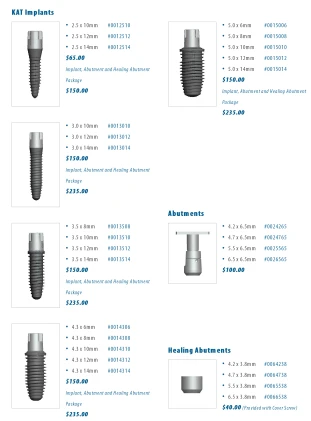

Sizes: Implant Diameter:2.5mm. Implant Length:10.0mm,12.0mm,14.0mm.
Implant Diameter:3.0mm. Implant Length:10.0mm,12.0mm,14.0mm.
Implant Diameter:3.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.3mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.0mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Sizes: Implant Diameter:2.5mm. Implant Length:10.0mm,12.0mm,14.0mm.
Implant Diameter:3.0mm. Implant Length:10.0mm,12.0mm,14.0mm.
Implant Diameter:3.5mm. Implant Length:8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:4.3mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implant Diameter:5.0mm. Implant Length:6.0mm,8.0mm,10.0mm,12.0mm,14.0mm.
Implants with Compatible Platforms
