Abutment Connection
internal
Abutment Connection Type
internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
reverse buttress
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
domed apex
Implant Platform Color
blue
Implant Body Surface
SBM (Soluble Blast Media), HA (hydroxyapatite)
Implant Material
titanium alloy grade 5 (Ti6Al4V)

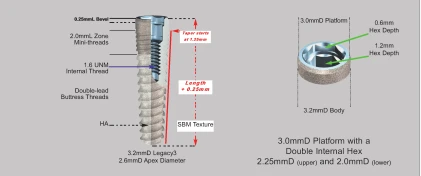

Implant Cervical Features: Mini Thread.
Implant to Abutment Connection: Internal Double Hexagon. Platform Diameter-3.0mm.
Upper Hexagon Depth-0.6mm. Width-2.25mm.
lower Hexagon Depth-1.2mm. Width-2.0mm.
Internal Bevel. Internal Thread-1.6mm.
Sizes: Implant Diameter:3.2mm. Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
Implant to Abutment Connection: Internal Double Hexagon. Platform Diameter-3.0mm.
Upper Hexagon Depth-0.6mm. Width-2.25mm.
lower Hexagon Depth-1.2mm. Width-2.0mm.
Internal Bevel. Internal Thread-1.6mm.
Sizes: Implant Diameter:3.2mm. Implant Length: 8.0mm,10.0mm,11.5mm,13.0mm,16.0mm.
