Abutment Connection
external
Abutment Connection Type
external hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow
Implant Cervical Features
unpolished surface, polished surface
Implant Apical Shape
domed apex
Implant Apical Features
grooved
Implant Material
commercially pure titanium (grade 4)

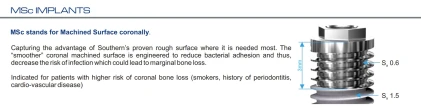

Implant Cervical Feature: MSc- 3.0mm polished.
Implant Body Shape: 3.0mm of the upper part-Cylinder. The lower part-Taper.
Implant Body Threads: V Shape. 0.8mm pitch.

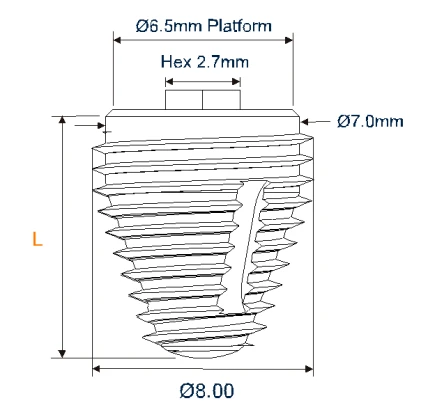

Platform to Abutment Connection: External Hexagon. Hexagon Diameter:2.7mm. Hexagon Height:0.7mm.
Platform Diameter:6.5mm.

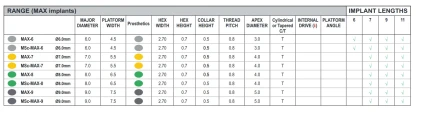

Sizes: Implant Diameter:8.0mm. Implant Length:7.0mm,9.0mm,11.0mm.
Implants with Compatible Platforms
