Abutment Connection
internal
Abutment Connection Type
internal morse taper, internal hex
Implant Body Shape
tapered
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
straight transition from body
Implant Cervical Features
unpolished surface
Implant Apical Shape
flat apex
Implant Apical Features
grooved
Implant Body Surface
SLA Ca layer
Implant Material
commercially pure titanium (grade 4)

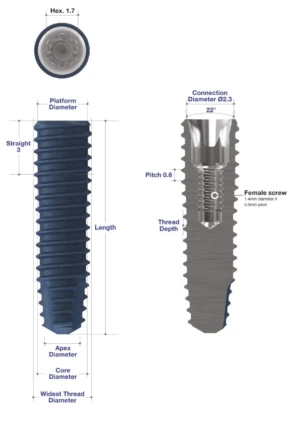

Implant Body Tread: 0.6mm pitch.

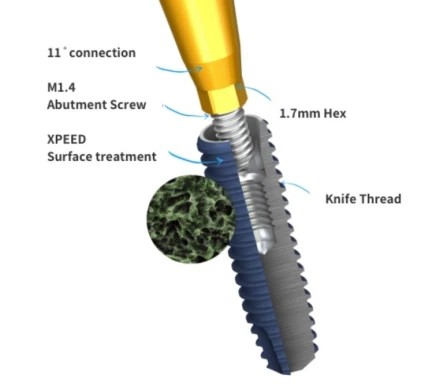

Platform to Abutment Connection: Internal Morse Taper 11 deg.
Internal Hexagon Width-1.7mm. Internal Thread- M1.4x0.3mm pitch. Connection Diameter: 2.3mm.

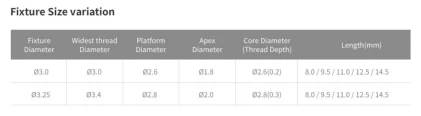

Sizes:
Implant Diameter: 3.0mm, 3.25mm.
Implant Length: 8.0mm,9.5mm,11.0mm,12.5mm,14.5mm.
Implants with Compatible Platforms
