Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
narrow, straight transition from body, wider than body
Implant Cervical Features
polished surface
Implant Apical Features
grooved
Implant Apical Shape
cone apex
Implant Body Surface
blasted with hydroxylapatite
Implant Material
commercially pure titanium (grade 4)

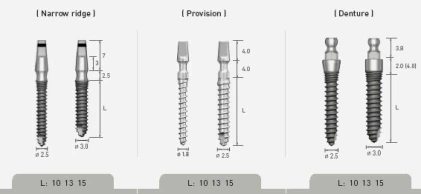

MS Denture-Platform to Abutment Connection: One Piece Ball Abutment.
Sizes: Implant Diameter- 2.5mm,3.0mm. Implant Length-10.0mm,13.0mm,15mm.

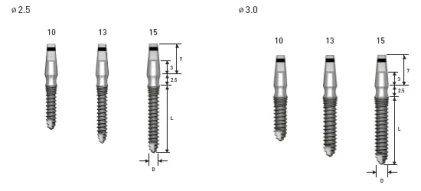

MS Narrow Ridge-Platform to Abutment Connection: One Piece Abutment.
Sizes: Implant diameter- 2.5mm,3.0mm. Implant Length-10.0mm,13.0mm,15mm.

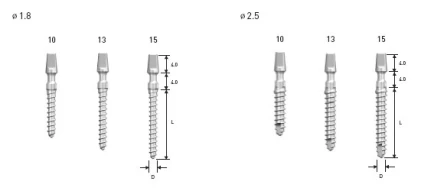

MS Provision-Temporary Implant. Platform to Abutment Connection: One Piece Abutment.
Sizes: Implant diameter- 1.8mm,2.5mm. Implant Length-10.0mm,13.0mm,15mm.
Sizes: Implant Diameter- 2.5mm,3.0mm. Implant Length-10.0mm,13.0mm,15mm.
MS Narrow Ridge-Platform to Abutment Connection: One Piece Abutment.
Sizes: Implant diameter- 2.5mm,3.0mm. Implant Length-10.0mm,13.0mm,15mm.
MS Provision-Temporary Implant. Platform to Abutment Connection: One Piece Abutment.
Sizes: Implant diameter- 1.8mm,2.5mm. Implant Length-10.0mm,13.0mm,15mm.
