Abutment Connection
others
Abutment Connection Type
one piece (no connection)
Implant Body Shape
cylinder
Implant Body Features
threaded
Implant Body Thread
V-shaped
Implant Cervical Shape
wider than body
Implant Cervical Features
unpolished surface
Implant Apical Features
grooved
Implant Apical Shape
flat apex
Implant Body Surface
acid etching
Implant Material
titanium alloy grade 5 (Ti6Al4V)

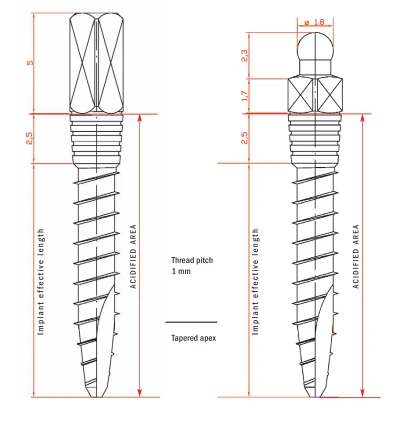

Implant Body Thread: Thread Pitch 1.0mm.

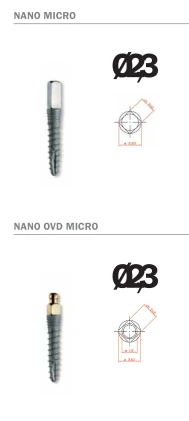

Platform to Abutment Connection: One Piece. Nano Micro- Square Abutment. Nano OVD Micro- Ball Abutment.
Sizes: Implant Diameter:2.3mm. Implant Length:10.0mm,11.5mm,13.0mm.
Platform to Abutment Connection: One Piece. Nano Micro- Square Abutment. Nano OVD Micro- Ball Abutment.
Sizes: Implant Diameter:2.3mm. Implant Length:10.0mm,11.5mm,13.0mm.
